2016 Tesla Model X 60D
Discontinued
Model X (Original) · SUV · AWD

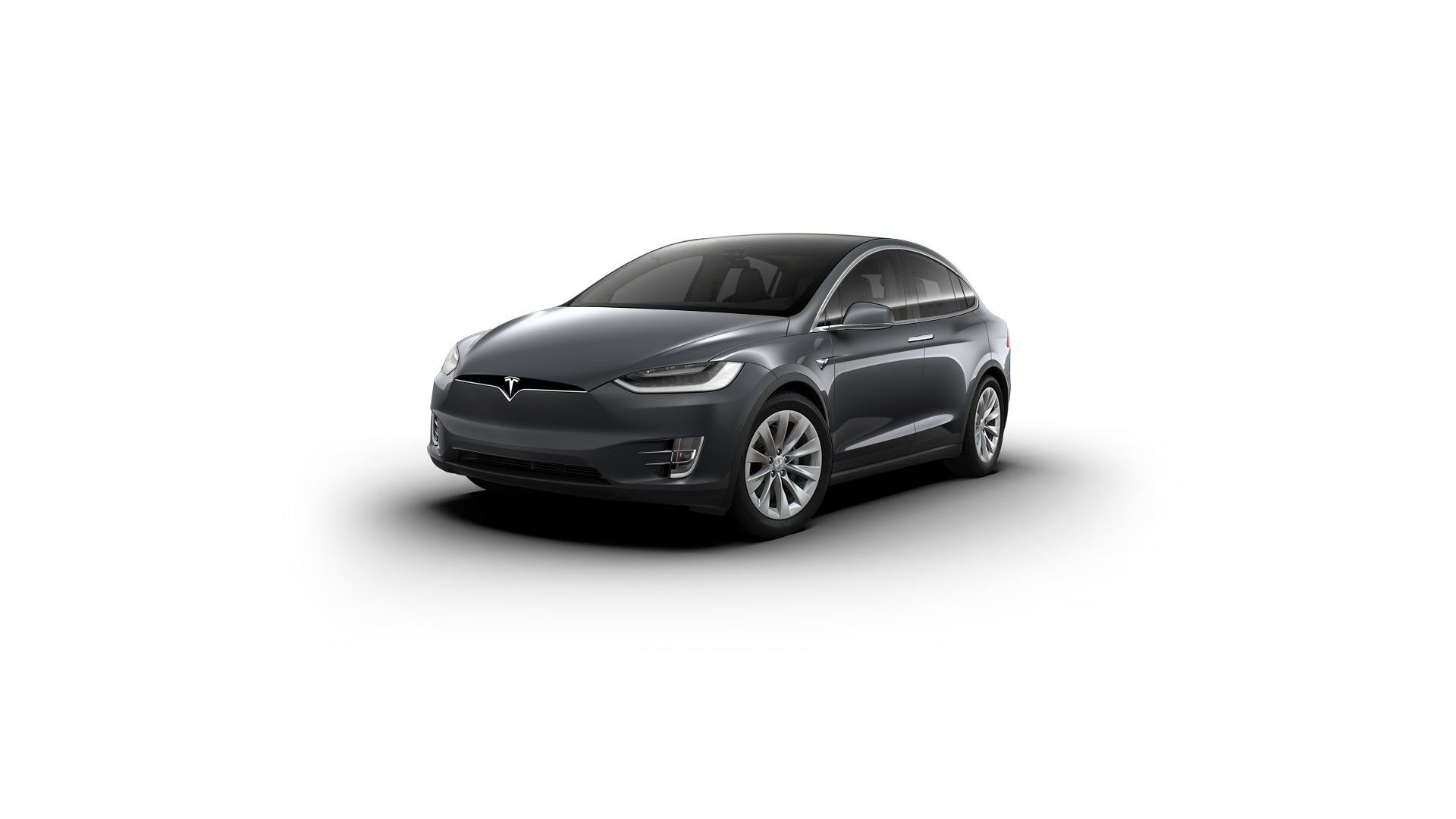

Images: Courtesy of Tesla, Inc.
The 2016 Tesla Model X 60D was an SUV produced from 2016 to 2017. It features a dual motor (ac induction) AWD powertrain. EPA-rated range is 200 miles. It accelerates from 0 to 60 mph in 6 seconds. Top speed is 130 mph. Manufactured at Fremont, CA.
200miEPA Range
6s0-60 mph
130mphTop Speed
328HPPower
60kWhBattery
$74kat launchBase Price
Tesla's answer to Model X sticker shock. Launched in July 2016 at $74,000, the 60D used a software-limited 75 kWh pack to undercut the 75D by several thousand dollars, trading down to a 200-mile EPA rating.
It was gone by early 2017, but its 75 kWh hardware meant owners could buy back the locked range later. Falcon-wing doors, seven-seat option and Autopilot hardware all carried over unchanged.
Charging
| Peak DC Fast | 145 kW |
| DC Fast 10-80% | ~42 min |
| AC Onboard Charger | 11.5 kW |
| Home L2 (full charge) | ~5.2 hrs |
| Connector | Tesla (NACS adapter) |
Full Specifications
| Model Years | 2016–2017 |
| Model | Tesla Model X |
| Variant | 60D |
| Status | Discontinued |
| Generation | Model X (Original) |
| Body Type | SUV |
| Seats | 7 |
| Doors | 4 |
| Drivetrain | AWD |
| Motor(s) | Dual Motor (AC Induction) |
| Battery Capacity | 60 kWh |
| EPA Range | 200 miles |
| 0-60 mph | 6 sec |
| Top Speed | 130 mph |
| Horsepower (est.) | 328 HP |
| Curb Weight | 5,381 lbs |
| Cargo Volume | 88 cu ft |
| Length | 198.3" |
| Width | 78.7" |
| Height | 66.3" |
| Wheelbase | 116.7" |
| Launch Base Price | $74,000 |
| Production Start | 2016-07 |
| Production End | 2017-02 |
| Autopilot | Enhanced Autopilot optional |
| Factory | Fremont, CA |
Warranty & Federal Credit
| Basic Vehicle Warranty | 4 years / 50,000 miles |
| Battery & Drive Unit | 8 years / 150,000 miles |
| Federal EV Tax Credit | Not available for vehicles acquired after September 30, 2025 |
Notable Features
- Software-limited 75 kWh pack
- $74,000 entry Model X
- Unlockable to 75D via paid update
Frequently Asked Questions
What is the EPA range of the 2016 Model X 60D?
The 2016 Model X 60D is EPA-rated at 200 miles on a full charge.
How fast is the 2016 Model X 60D 0-60 mph?
Tesla quotes 6 seconds 0-60 mph (with one-foot rollout subtracted, per Tesla's standard). Top speed is 130 mph.
How fast does the 2016 Model X 60D charge?
145 kW peak at a Tesla Supercharger, with a 10-80% charge in roughly 42 minutes. On a Level 2 home charger it accepts up to 11.5 kW AC, so a full charge from empty takes about 5.2 hours. Connector: Tesla (NACS adapter).
What's the battery warranty on the 2016 Model X 60D?
Tesla's battery and drive unit limited warranty covers 8 years or 150,000 miles (whichever comes first), with at least 70% capacity retention.
